Tri 5 Chevy PRO-G Front, 4 Link Rear Complete Frame


HEIDTS Tri 5 Chevy Full Frame!

tri 5 full frame front

Update the ride and handling of your Tri 5 with a complete new frame from Heidts. Our Tri 5 Frame comes standard with the proven Heidts PRO-G IFS and Heidts 4 Link rear suspension built on 10 gauge TIG welded frame rails. Included in the base IFS kit, power steering, adjustable coil overs, 2″ drop spindles and a 1.25″ sway bar with 11″ Wilwood rotors and 4 piston calipers. The triangulated 4 link comes standard with adjustable coil overs, rear stabilizer bar and a 9″ housing. For an even smoother ride, or for autocross applications, be sure to check out our IRS frame by clicking here. Please call for additional information or for options that may not be listed. Frames ship via truck, please call for a shipping estimate. If placing your order online, we will provide a shipping quote after the order has been placed.

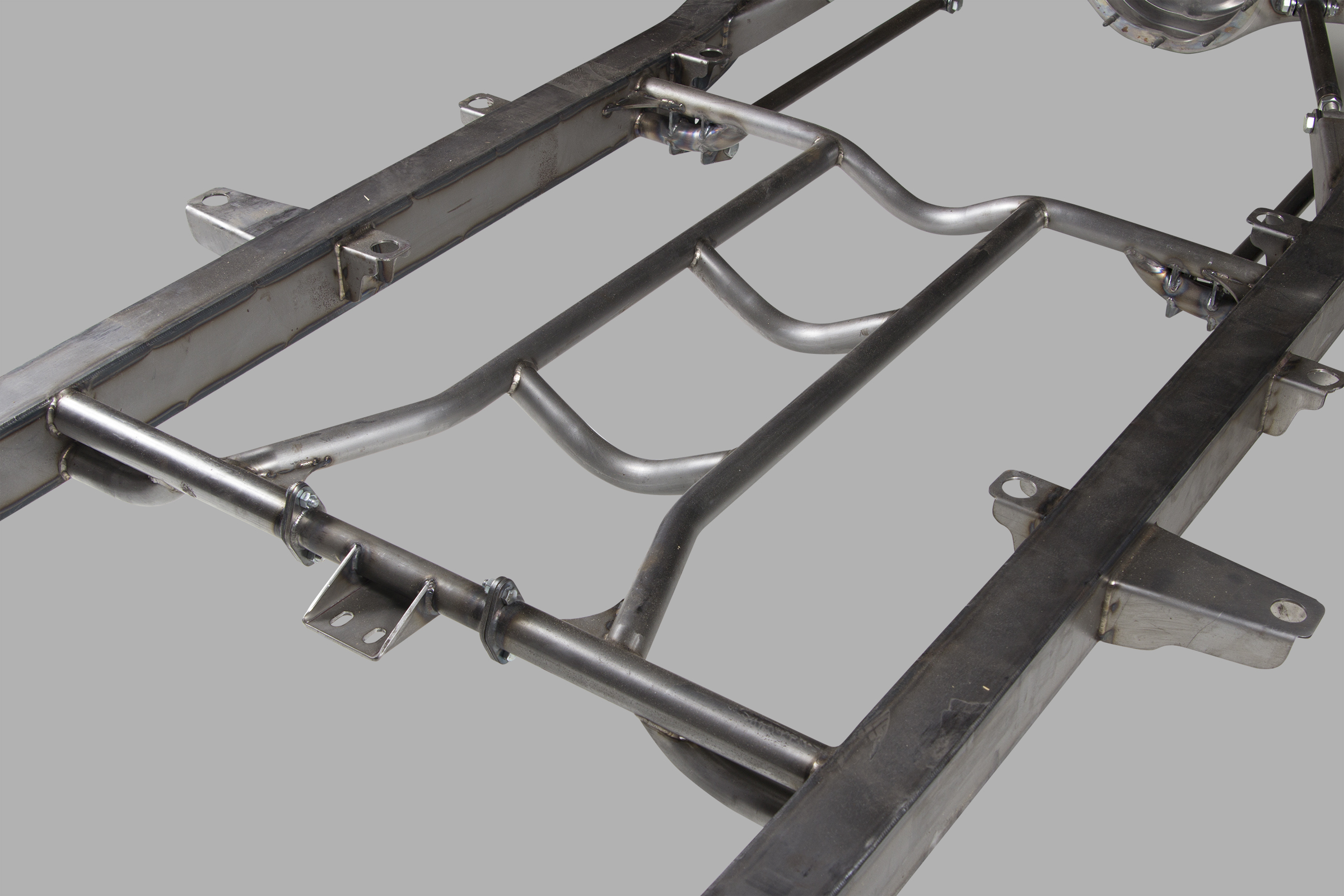

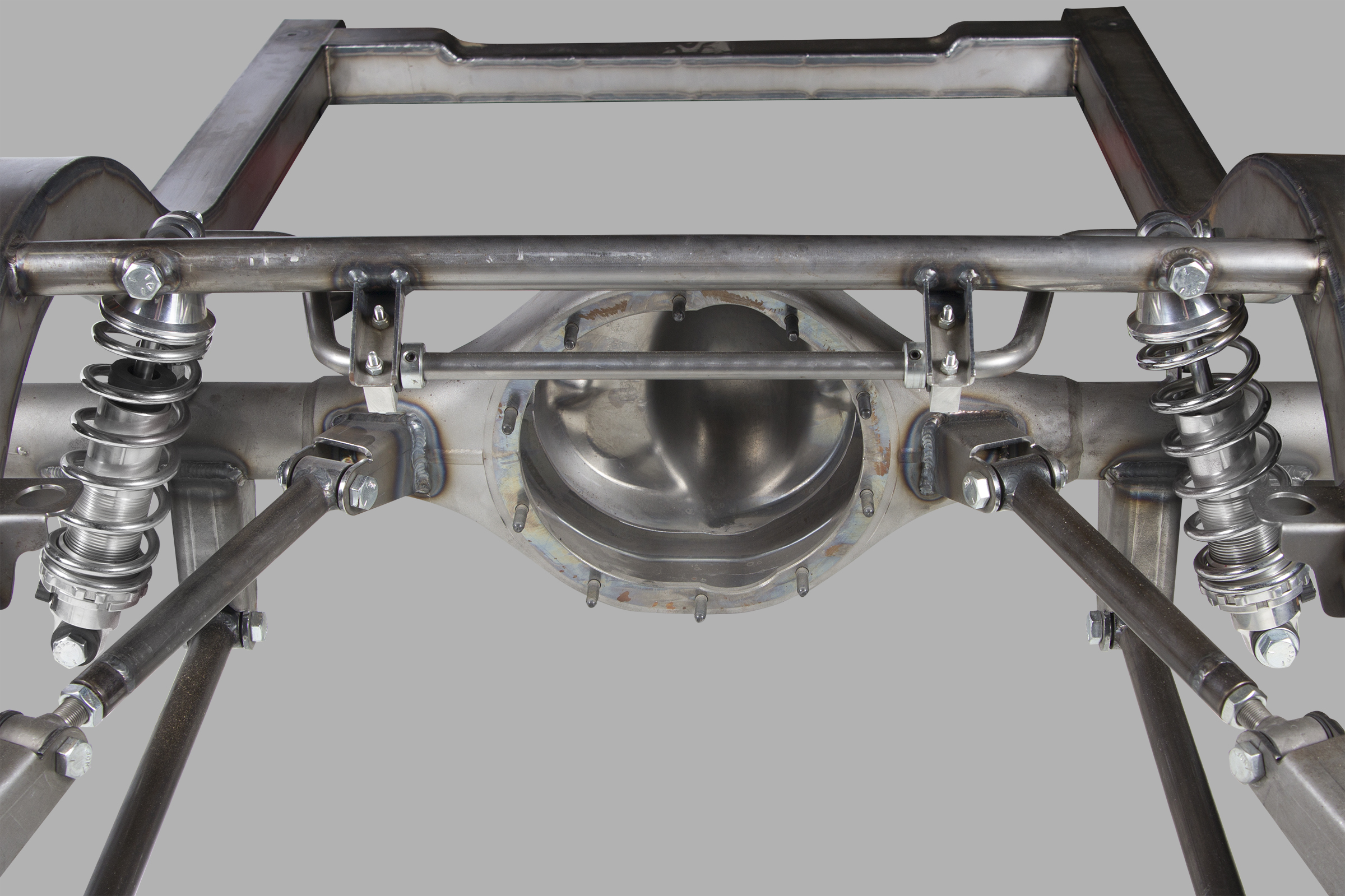

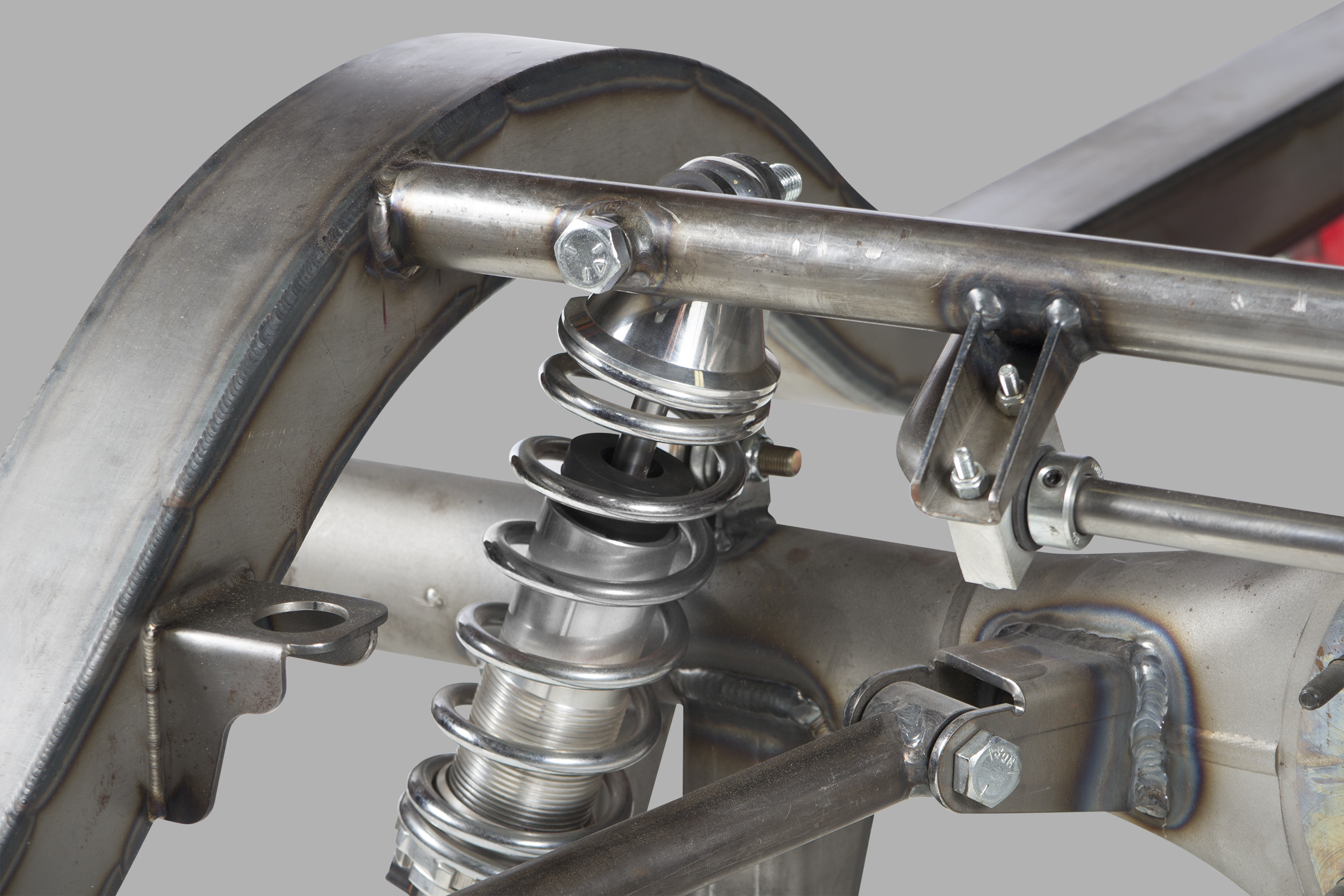

tri 5 motor mounts pro-g fronttri 5 center bracingtri 5 rear end tri 5 spring rear

Select your options and Add To Cart below.

   *Shown Painted -- This item is shipped unpainted.

Complete Base Kit(Select One)
Description & Part #
Base Price
Tri 5 Chevy PRO-G Front, 4 Link Rear Complete Frame
Part# PRO-100-28-HF-K
Add $19,000.00
Shock & Spring Selection(Select One)Reset Selection
Description & Part #
Base Price
BILLET COIL-OVER SHOCKS
Part# CB-160
Included in base kit!
Swaybars(Select One)Reset Selection
Description & Part #
Base Price
SWAYBAR 1-1/4″ SPLINE
Part# SB-403
Included in base kit!
Control Arm(Select One)Reset Selection
Description & Part #
Base Price

PLAIN CONTROL ARMS AND HARDWARE
Part# BS-025-K
Included in base kit!
Front Brake Options(Select One)Reset Selection
Description & Part #
Base Price
Wilwood 11″ Smooth Rotors, 4 Piston Black Calipers
Part# DFP-221-B
Included in base kit!
Wilwood 11″ Drilled Rotors, 4 Piston Black Calipers
Part# DFP-221-D-B
Add $335.00
Wilwood 11″ Drilled Rotors, 4 Piston Polished Calipers
Part# DFP-221-D-P
Add $335.00
Wilwood 11″ Drilled Rotors, 4 Piston Red Calipers
Part# DFP-221-D-RED
Add $335.00
Wilwood 12″ Drilled Rotors, 4 Piston Black Calipers
Part# DFP-222-D-B
Add $465.00
Wilwood 12″ Drilled Rotors, 4 Piston Polished Calipers
Part# DFP-222-D-P
Add $465.00
Wilwood 12″ Drilled Rotors, 4 Piston Red Calipers
Part# DFP-222-D-RED
Add $465.00
Wilwood 13″ Drilled Rotors, 6 Piston Black Calipers
Part# DFP-223-D-B
Add $1,685.00
Wilwood 13″ Drilled Rotors, 6 Piston Polished Calipers
Part# DFP-223-D-P
Add $1,685.00
Wilwood 13″ Drilled Rotors, 6 Piston Red Calipers
Part# DFP-223-D-RED
Add $1,685.00
4 Link Kit(Select One)Reset Selection
Description & Part #
Base Price
4-LINK FRAME KIT
Part# RC-151-H-HF
Included in base kit!
Links(Select One)Reset Selection
Description & Part #
Base Price

PLAIN 4-LINK BARS AND HARDWARE
Part# RC-152-K
Included in base kit!
Swaybar(Select One)Reset Selection
Description & Part #
Base Price

STABILIZER BAR REAR, 55-57 TRI-FIVE
Part# SB-180-K
Included in base kit!
Shocks and Springs(Select One)Reset Selection
Description & Part #
Base Price
Billet Coilover Shock
Part# CB-105-K-K
Included in base kit!
Housing Option(Select One)Reset Selection
Description & Part #
Base Price
9″ HOUSING WITH BRACKETS
Part# RC-140-58-H-T
Included in base kit!
3rd Member Options(Select One)Reset Selection
Description & Part #
Base Price
3RD MEMBER IRON 3.00 RATIO
Part# BN-300-I
Add $742.00
3RD MEMBER IRON,3.25 RATIO
Part# BN-325-I
Add $724.00
3RD MEMBER IRON CASE 3.50 RATIO
Part# BN-350-I
Add $742.00
3RD MEMBER IRON POSITRACTION 3.70 RATIO
Part# BN-370-I
Add $742.00
3RD MEMBER IRON CASE 3.90 RATIO
Part# BN-390-I
Add $742.00
3RD MEMBER IRON CASE 4.11 RATIO
Part# BN-411-I
Add $742.00
3RD MEMBER IRON POSITRACTION 3.00 RATIO
Part# BN-300-I-L
Add $1,333.00
3RD MEMBER IRON POSITRACTION 3.25 RATIO
Part# BN-325-I-L
Add $1,333.00
3RD MEMBER IRON POSITRACTION 3.50 RATIO
Part# BN-350-I-L
Add $1,333.00
3RD MEMBER IRON POSITRACTION 3.70 RATIO
Part# BN-370-I-L
Add $1,333.00
3RD MEMBER IRON POSITRACTION 3.90 RATIO
Part# BN-390-I-L
Add $1,333.00
3RD MEMBER IRON POSITRACTION 4.11 RATIO
Part# BN-411-I-L
Add $1,333.00
Rear Brake Options(Select One)Reset Selection
Description & Part #
Base Price
11″ DRUM BRAKES, 9″ FORD
Part# RN-054-K
$540.00
12″ ECONO, INTERNAL PB GM CAL. BIG FORD NS 2.50
Part# DR-005-E-P-K
$753.00
Wilwood 12″ Smooth Rotors, 4 Piston Black Calipers, Parking Brake
Part# DRE-005-P-B
$766.00
Wilwood 12″ Smooth Rotors, 4 Piston Red Calipers, Parking Brake
Part# DRE-005-P-RED
$861.00
Wilwood 12″ Smooth Rotors, 4 Piston Polished Calipers, Parking Brake
Part# DRE-005-P
$842.00
Wilwood 12″ Drilled Rotors, 4 Piston Black Calipers, Parking Brake
Part# DRE-005-P-D-B
$845.00
Wilwood 12″ Drilled Rotors, 4 Piston Red Calipers, Parking Brake
Part# DRE-005-P-D-RED
$945.00
Wilwood 12″ Drilled Rotors, 4 Piston Polished Calipers, Parking Brake
Part# DRE-005-P-D
$958.00

Total:
