1947-1955 Chevy Truck Frame


HEIDTS 47-55 Chevy Truck (1st series) Full Frame!

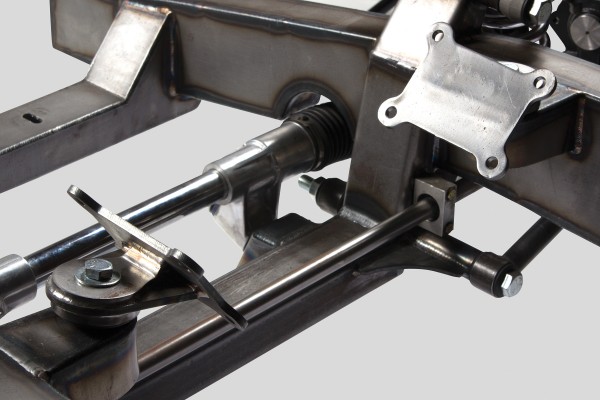

47-54 truck center bracing 47-54 truck motor mounts47-54 truck 4 link side47-54 truck spindle spring

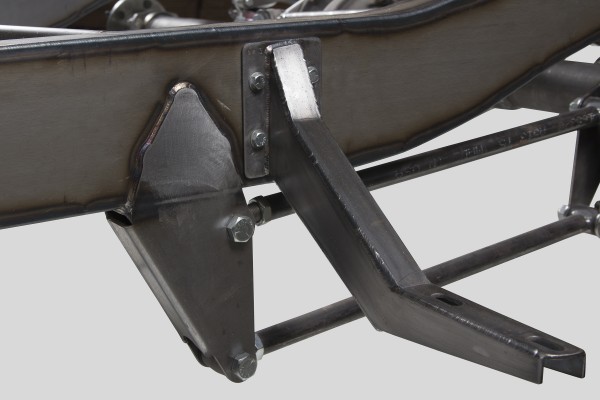

Replace your tired old frame with Heidts new 1947-1955 (1st series) full truck frame. Heidts truck frames come standard with the Heidts Superide II IFS and 4 Link rear suspension on  plasma cut and TIG welded 10 gauge steel frame rails. Our SUPERIDE® II IFS System is the ultimate front suspension system for your classic AD truck, offering the smooth ride and great handling of independent suspension. Add to the value of your car with a HEIDTS® independent suspension system, the most popular suspension system in use today. Why? Because they are engineered right to work right. The Heidts 4 link rear suspension also comes with adjustable coil overs standard offering a better ride and more control then a stock leaf spring setup.

All New! Not A Mustang II conversion kit!

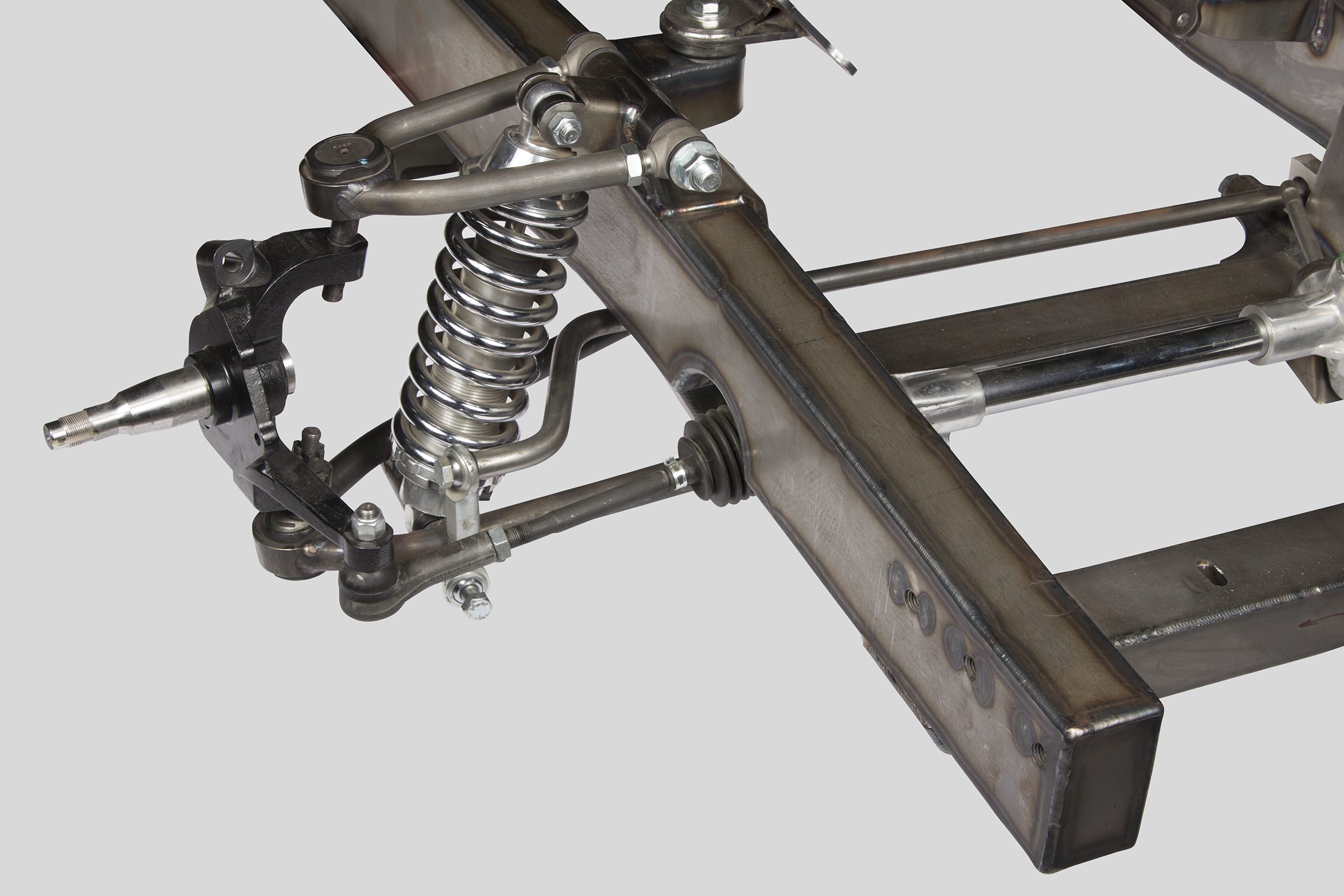

Our SUPERIDE® II IFS System uses a Mustang II spindle to allow for a front mount rack & pinion unit, this allows for easy engine installation. The upper control arms use threaded adjusters for the wheel alignment. These threaded adjusters, unlike eccentric adjusters, will never “slip” and lose alignment no matter how big a bump you hit. “Smooth” describes the ride: very low and highly steerable with no bumpsteer and built-in anti-dive

Frame ships unpainted via truck, please call for shipping estimate. Other options available, please call for more information if you want something not seen here.

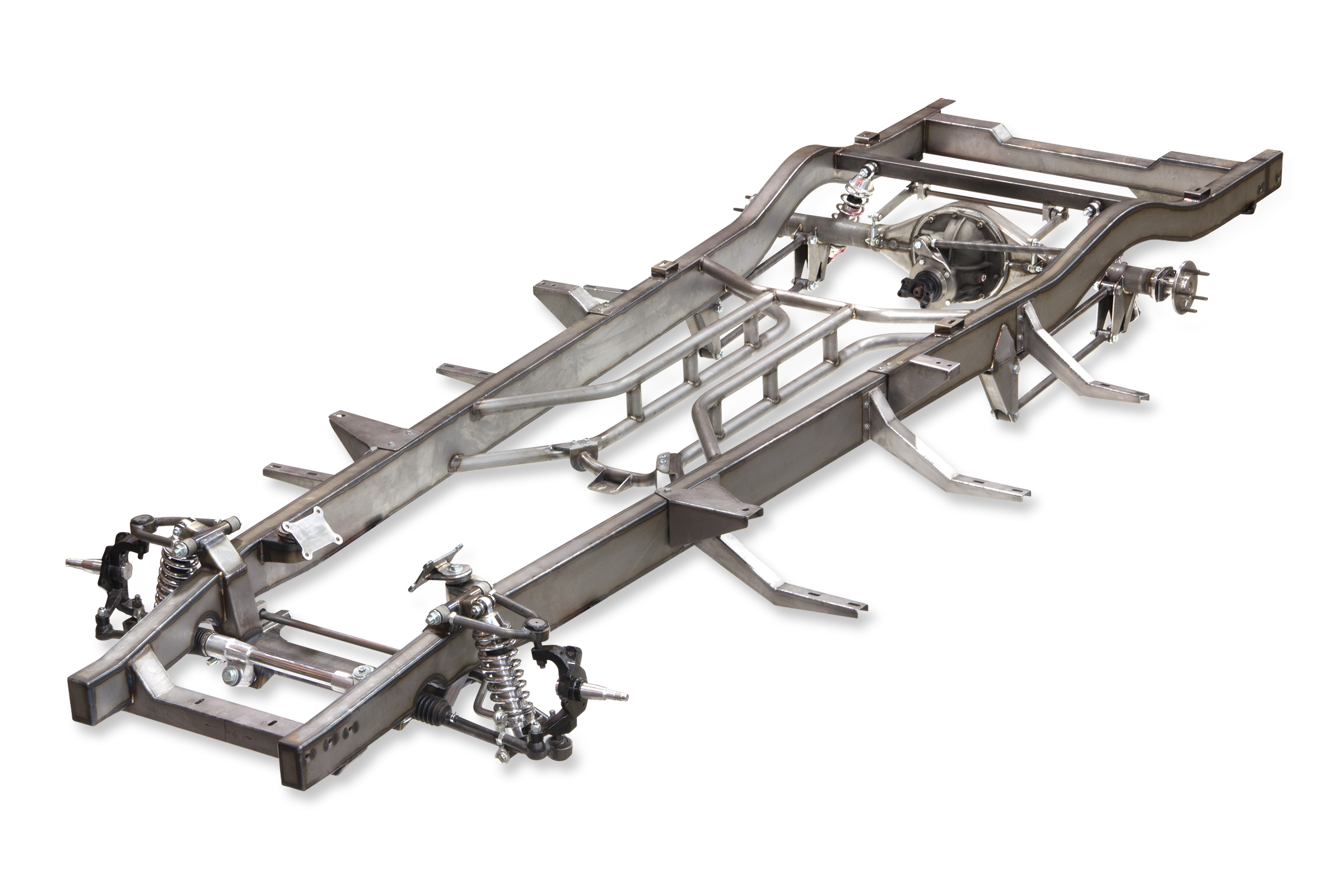

47-54 truck full frame

Select your options and Add To Cart below.

   *Shown Painted -- This item is shipped unpainted.

Complete Base Kit(Select One)
Description & Part #
Base Price
1947-1955 (1st Series) Chevy Truck Frame
Part# BX-306-HF-K
$16,500.00
Control Arm Options (Select One)Reset Selection
Description & Part #
Base Price

PLAIN CONTROL ARMS AND HARDWARE
Part# BS-025-K
Included in base kit!

PLAIN NARROWED CONTROL ARMS AND HARDWARE
Part# BS-025-N-K
Included in base kit!
STAINLESS STEEL CONTROL ARMS AND HARDWARE
Part# BS-026-K
$1,345.00

STAINLESS STEEL NARROWED CONTROL ARMS AND HARDWARE
Part# BS-026-N-K
$1,345.00
Swaybars(Select One)Reset Selection
Description & Part #
Base Price
SUPERIDE II STABILIZER BAR
Part# BS-056-K
Included in base kit!
Brake Options(Select One)Reset Selection
Description & Part #
Base Price
11″ Iron Rotor, Wilwood 4 Piston Blk Cal. Chevy BP
Part# DF-202-C-B-K-K
Included in base kit!
11″ Iron Rotor, Wilwood 4 Piston Pol. Cal. Chevy BP
Part# DF-202-C-P-K-K
Included in base kit!
11″ Iron Rotor Wilwood 4 Piston Red Cal Chevy BP
Part# DF-202-C-RED-K-K
Included in base kit!
Wilwood 11″ Smooth Rotors and 4 Piston Black Calipers
Part# DFS-202-B
Add $427.00
Wilwood 11″ Smooth Rotors, 4 Piston Polished Calipers
Part# DFS-202-P
Add $427.00
Wilwood 11″ Smooth Rotors And 4 Piston Red Calipers
Part# DFS-202-RED
Add $427.00
Wilwood 11″ Drilled Rotors And 4 Piston Black Calipers
Part# DFS-202-D-B
Add $594.00
Wilwood 11″ Drilled Rotors, 4 Piston Polished Calipers
Part# DFS-202-D-P
Add $594.00
Wilwood 11″ Drilled Rotors and 4 Piston Red Calipers
Part# DFS-202-D-RED
Add $594.00
Wilwood 12″ Drilled Rotors And 4 Piston Black Calipers
Part# DFS-208-B
Add $686.00
Wilwood 12″ Drilled Rotors, 4 Piston Polished Calipers
Part# DFS-208-P
Add $686.00
Wilwood 12″ Drilled Rotors And 4 Piston Red Calipers
Part# DFS-208-RED
Add $686.00
Shock Selection(Select One)Reset Selection
Description & Part #
Base Price

BILLET COIL-OVER SHOCKS SILVER POWDER COATED SPRINGS
Part# BS-001-XX
Included in base kit!
Rack & Pinion Options(Select One)Reset Selection
Description & Part #
Base Price
MUSTANG II MANUAL RACK AND PINION
Part# MP-018-K-K
Included in base kit!
MUSTANG II POWER RACK & PINION
Part# MP-038-3-K
Add $200.00
Spindle Options(Select One)Reset Selection
Description & Part #
Base Price
STOCK SPINDLES
Part# MP-028-K-K
Included in base kit!

DROPPED SPINDLES, 2″
Part# SP-101-K-K
Included in base kit!
4 Link Kit(Select One)Reset Selection
Description & Part #
Base Price
CHEVY TRUCK 4-LINK
Part# RB-108-HF
Included in base kit!
Panhard Bar(Select One)Reset Selection
Description & Part #
Base Price
Plain Panhard Bar Package
Part# RP-105-K
Included in base kit!
1947-1954 CHEVY STAINLESS STEEL PANHARD ROD WELD-ON
Part# RP-106-SS
Add $323.00
Rear Coilover Shock Options(Select One)Reset Selection
Description & Part #
Base Price
Billet Coilover Shock
Part# CB-105-K-K
Included in base kit!
Rear Axle Housing(Select One)Reset Selection
Description & Part #
Base Price

9″ HOUSING, 60″ TRACK WIDTH
Part# RC-040-60-K
Included in base kit!
Rear Axles(Select One)Reset Selection
Description & Part #
Base Price
AXLES, 31 SPLINE, 60″ TRACK WIDTH
Part# RC-041-60-31-K
Included in base kit!
3rd Member Options(Select One)Reset Selection
Description & Part #
Base Price
3RD MEMBER, IRON, POSI, 3.00 RING & PINION
Part# BN-300-I-L-T
Included in base kit!
3RD MEMBER, IRON, POSI, 3.25 RING & PINION
Part# BN-325-I-L-T
Included in base kit!
3RD MEMBER, IRON, POSI, 3.50 RING & PINION
Part# BN-350-I-L-T
Included in base kit!
3RD MEMBER, IRON, POSI, 3.73 RING & PINION
Part# BN-370-I-L-T
Included in base kit!
3RD MEMBER, IRON, POSI, 3.90 RING & PINION
Part# BN-390-I-L-T
Included in base kit!

Total:
